The Streamline range
Model MEC™ 1000
 for use with MEC™ MECetchBOND CZ-8100 chemistry

To download a brochure in PDF format click here

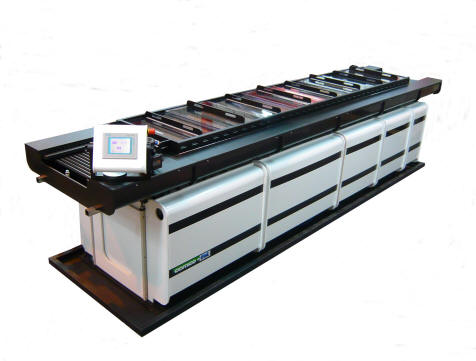

The Cemco Streamline Range Pat Pend. horizontal processor has been configured and qualified for use with MEC™ MECetchBOND CZ-8100 chemistry at a conveyor speed of 500 – 1000mm/min.

The complete, simple to use treatment system provides a superior copper surface topography for enhanced adhesion properties between the copper and Photo Polymer coatings. The system comprises pre-cleaning, pre-dip, microetch and acid rinse stages. A number of options are available including automatic dosing, loading and unloading and higher throughput capacity.
 Feed Conveyor with drive motor
Three-stage Cascade Wash
MEC™ MECetchBOND CZ-8100 treatment
Two-stage Cascade Wash
Acid Rinse
Three-stage Cascade DI Wash
Panel Drier
Exit Conveyor

Conveyor speed : 0.5-1.0 mtr/minute
Conveyor working widths : 510mm and 610mm
Panel size : Min. 305mm x 150mm
                     Max. 610mm width
Panel thickness : 0.05 (inners) plus copper up to 5.0mm
Overall length : 4920 mm
Overall width : 1250 mm and 1287mm
Voltage : 400V.
Frequency : 50 Hz
Water consumption (rinsing) : Mains 3-6 ltr/min approx x 2
                                                   DI 3-6 ltr/min throughput dependent


High efficiency, non-contact, Streamline Fluid
Engines. Pat Pend.
All polypropylene fabrication
Easy access sliding covers
Easy clean removable sumps
8 Roller process containment
EPDM conveyor rollers used throughout for improved wear resistance and chemical compatibility
All gears are manufactured from PVDF
Direct drive, low torque transport system
Siemens PLC control with touch-screen interface
automatic fault detection etc.
Installation pack including bund tray, extraction
ducts, drain and water manifolds etc.
Can be located against a wall
Small footprint
Low power
Low water consumption
Simple fast maintenance procedures
Quick, easy access
Flexible and rigid transport capability
Low fluid losses
No roller wheel marks or staining
